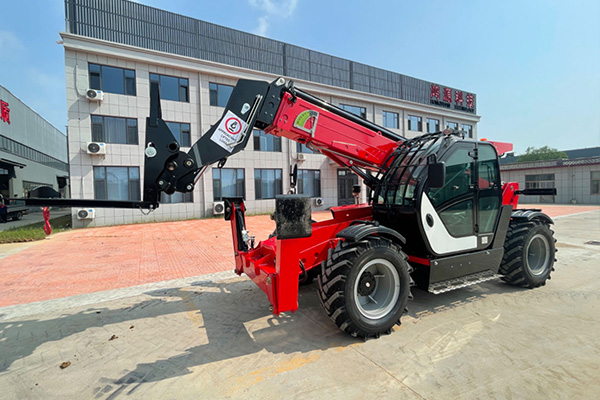

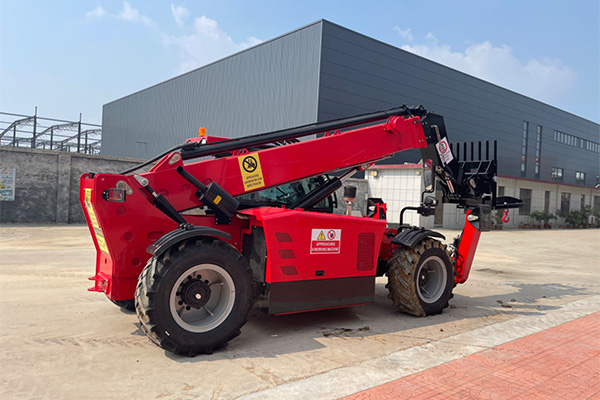

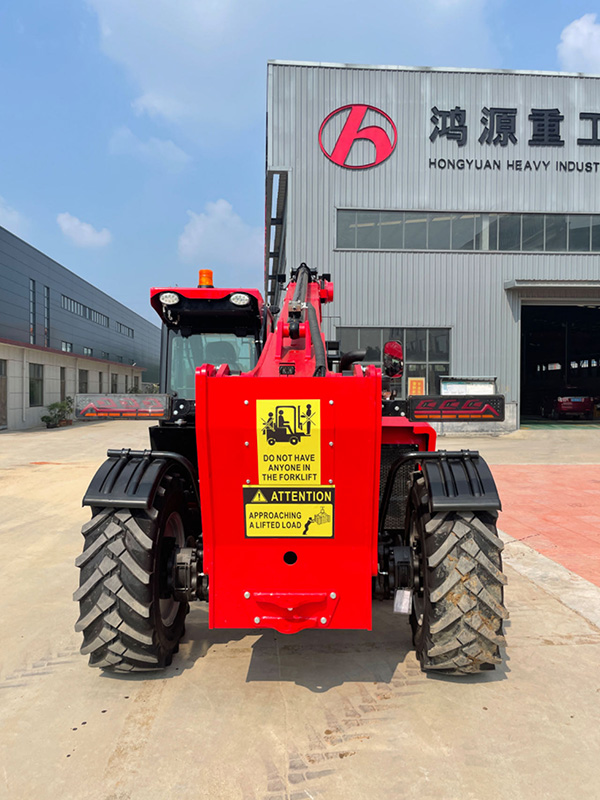

Main performance parameters of Telehandler TH1440
| 1 | M aximum lifting capacity | 4000kg | |
| Performance | 2 | Maximum Lifting Capacity at Maximum reach | 3500kg |
| 3 | M aximum Lifting Capacity at Maximum boom extension | 1800kg | |

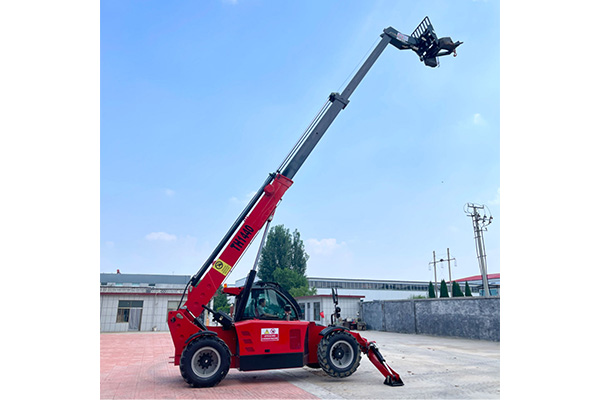

| 4 | Maximum lifting height | 14000mm | |
| 5 | Maximum Horizontal boom extension | 3300mm | |
| 6 | Maximum Gradeablity | 300 | |
| 7 | Operating Weight | 11000kg | |
| 8 | Maximum Speed | 30km/h | |
| 9 | Wheel base | 3000mm | |
| 10 | Overall dimension (L×W×H) | 6500x2300x2500mm | |
| Engine | 11 | Model | Yunnei YN48GBZ |
| 12 | Pattern | Turbocharger,inline,water cooled,four strokes, dir.injection | |
| 13 | Rated power | 92kw | |
| 14 | Specified rotational speed | 2200r/min | |
| 15 | Model of torque device | YJ280 | |
| 16 | Number of gear shift | 2 forward, 2 reverse | |
| Drive axles | 17 | Axle | DIFFERENTIAL AXLES 3908H |
| 18 | Driving model | Four Wheel Steering(4WS),Front Wheel Steering,Crab Steering | |
| 19 | Front axle | Rigid axle | |
| 20 | Rear axle | Oscillating axle | |
| Brake system |
21 |
Service brake |
Service air brake on the 4 wheels with double hydraulic system |
| 22 | Parking brake | Hydraulic Negative parking brake | |
| Tyre | 23 | Type specification | 16/70-24 |
