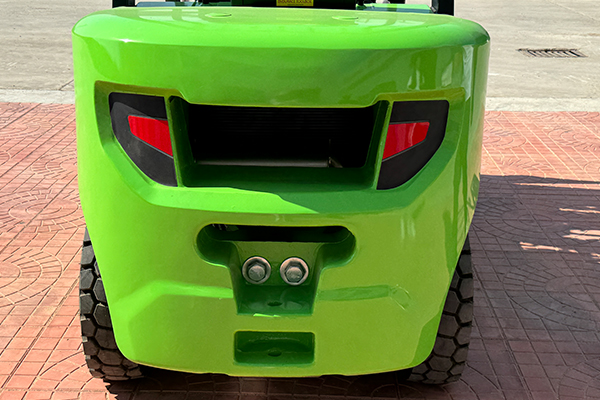

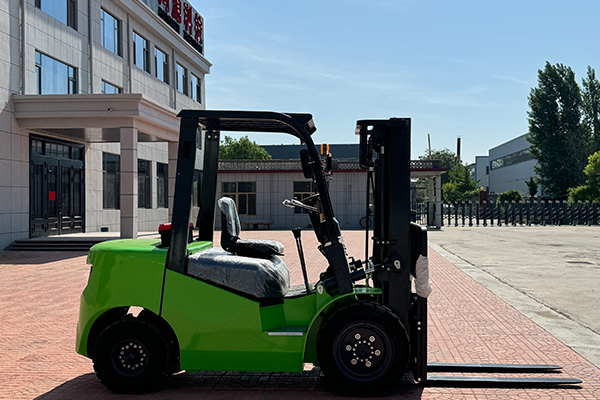

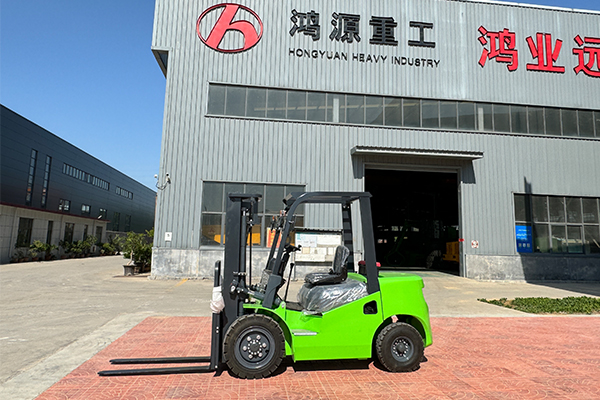

Technical Specification of Model Cross Forklift
Model | CPCY30 Forklift | |
Engine |
Model | Xinchai A498BT1( Euro III emission) |
Rated output(kw) | 36.8KW | |
Type | In line,vertical,water cooled,four-stroke | |
Number of cylinders | 4 | |
Cylinder bore | 98 | |
Cylinder sroke | 105 | |
Rated speed(r/min) | 2400 | |
Method of staring | Electric | |
Total displacement (L) | 3.168 | |
Rated load(kg) | 3000 | |
Load center distance(mm) | 565 | |
Lift height(mm) | 3700 | |
The freedom lifts the altitude(mm) | 150 | |
Max lifts the speed(full load)(mm/s) | 372 | |
Gate inclination angle (F/R)(°) | 6/12 | |
Moving velocity (idling)(km/h) | 19 | |
Max climbing power(%) | 50 | |
Overal dimensions(L*W*H)(mm) | 4585*1730*2720 | |
Dead weight(kg) | 3268 | |
Min ground clearance(mm) | 260 | |
Wheel distance(mm) | 1320 | |
Axle-base(mm) | 2040 | |
Forks the tooth size(L*W*H)(mm) | 1070*130*45 | |
Max traction(kgf) | 2587 | |
Max steering angle(°) | ±35° | |
The after brige swing angle(°) | ±12° | |
Min turning radius(mm) | 4500 | |
Drive Mean | Four are d rive |
Standard :Xinchai 498 Euro III Engine. 4 Cylinder Engine. Automatic with Torque Converter. 4 Wheel Drive. Wheel reduction axle. 220V Engine Pre-heater. Cabin Heater. Air Pre-heater. Luxury Cabin. Adjustable Steering Wheel. Mechanical joystick. 20.5/70-16 tires. Lock For Steering Cylinder. Easy-damaged Spare Parts.
Optional equipments:LED Lights. Backward Camera. Hydraulic Joystick. Electric Joystick. Tipping Cabin.
