| Maximum Dumping Height | 5000mm |
| Engine model | Cummins 4BT3.9-C100 |
| Rated Power | 100HP |
| Total Machine Weight | 5020KG |
| Max. Grab Capacity | 1500KG |
| Working Efficiency | 1000kg/min |
| Hydraulic System Working Pressure | 31.5Mpa |
| Maximum Flux | 63ml/r |
| Slope | 250 |
| Walking Speed | ≤12km/h |
| Overall Dimension(LxWxH) | 5700x2200x2300mm |
| Tread | 1780mm |
| Wheelbase | 3062mm |
| Tyre model | 18.4-30(Front dual) 400-60-15.5(Rear single) |
Optional

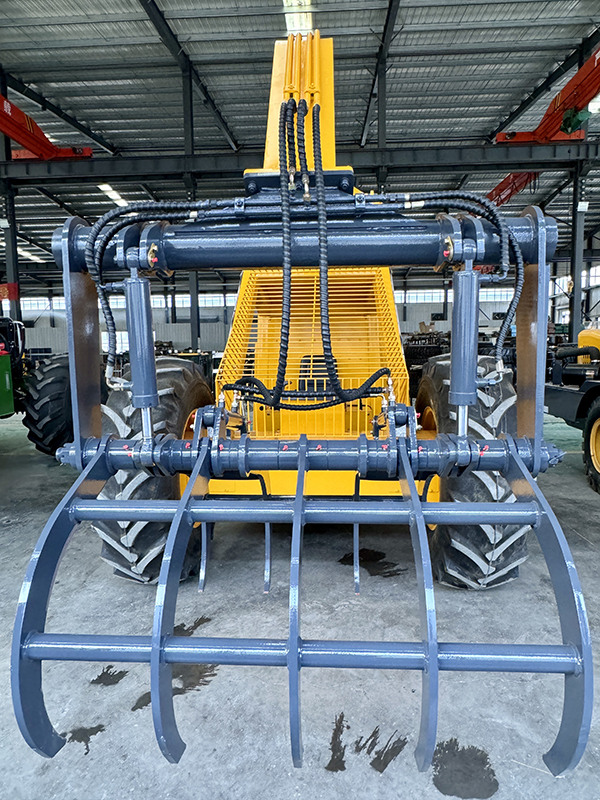

360°Rotation Grapple
